Low-Profile. High-Performance. Affordable Durability.

DENALI's DL6 features a unique rectangular design that makes it one of the lowest-profile lights with over 5,000 lumens to date. The design merges affordability with durability through a one-piece TIR optic and robotic weld construction.

Delivering 10,200 lumens per pair with class-leading beam performance, the DL6 utilizes proprietary oversized TIR optics for efficient beam distribution, increasing distance and width. The driving beam is ECE R149 certified road-legal for use as a primary or auxiliary high beam in the EU.

Beam Performance

Configuration	Distance	Width
Single Pod	1,000 feet (305m)	203 feet (62m)
Pair	1,330 feet (406m)	270 feet (82m)

Specifications

Specification	Single Pod	Pair
Raw Lumens	5,100	10,200
Power Draw	48W / 4A	96W / 8A
Weight	1.5 lbs (680g)	3 lbs (1361g)

Specification	Value
Pod Size	3" x 4.5" Rectangle x 2" Deep
LEDs	Cree XPL HI (8W per LED)
Color Temp	6000K
Operating Voltage	9-32V DC
Waterproof	IP68 & IP69K (Submersible & High-Pressure Spray)
Vibration Rating	21grms
Beam Certification	ECE R149 Driving Beam
EMC	R10, CISPR 25, CE, UKCA
DataDim™ Compatible	Yes (3-wire DT connector)

Key Features

HiDrive LEDs - 10,200 lumens per pair using top-bin Cree XPL HI components
Oversized TIR Optics - Efficient beam distribution for increased distance and width
Low-Profile Design - Unique rectangular 3" x 4.5" footprint
DataDim™ Technology - 3-wire plug-and-play dimming connectivity
DrySeal™ Construction - Robotically welded for 100% submersible waterproof performance
IP68 & IP69K Rated - Withstands submersion and high-pressure spray
Extreme Durability - Heavy-duty 4mm powder-coated steel frame, 21grms vibration rated
UV-Hardened Lens - Reinforced polycarbonate lens with hard UV coating
ECE R149 Certified - Road-legal auxiliary high beam (white lenses)
EMC Compliant - R10, CISPR 25, CE, UKCA certified

Color Lens Options

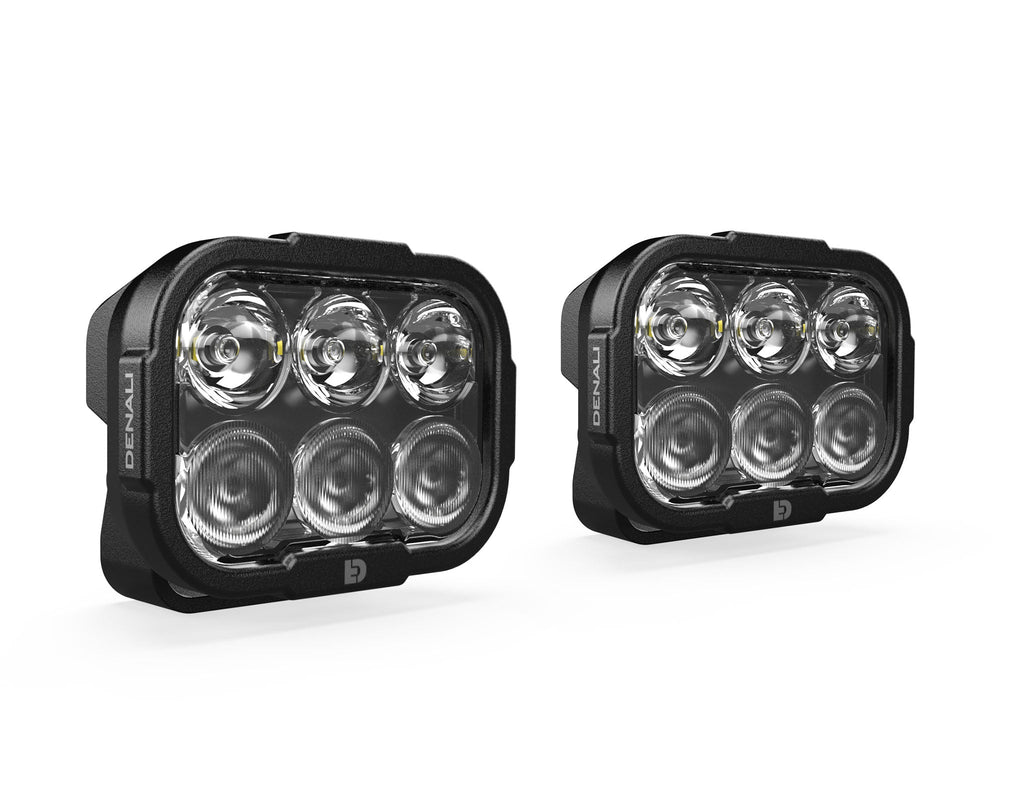

White - ECE R149 certified for road-legal auxiliary high beam

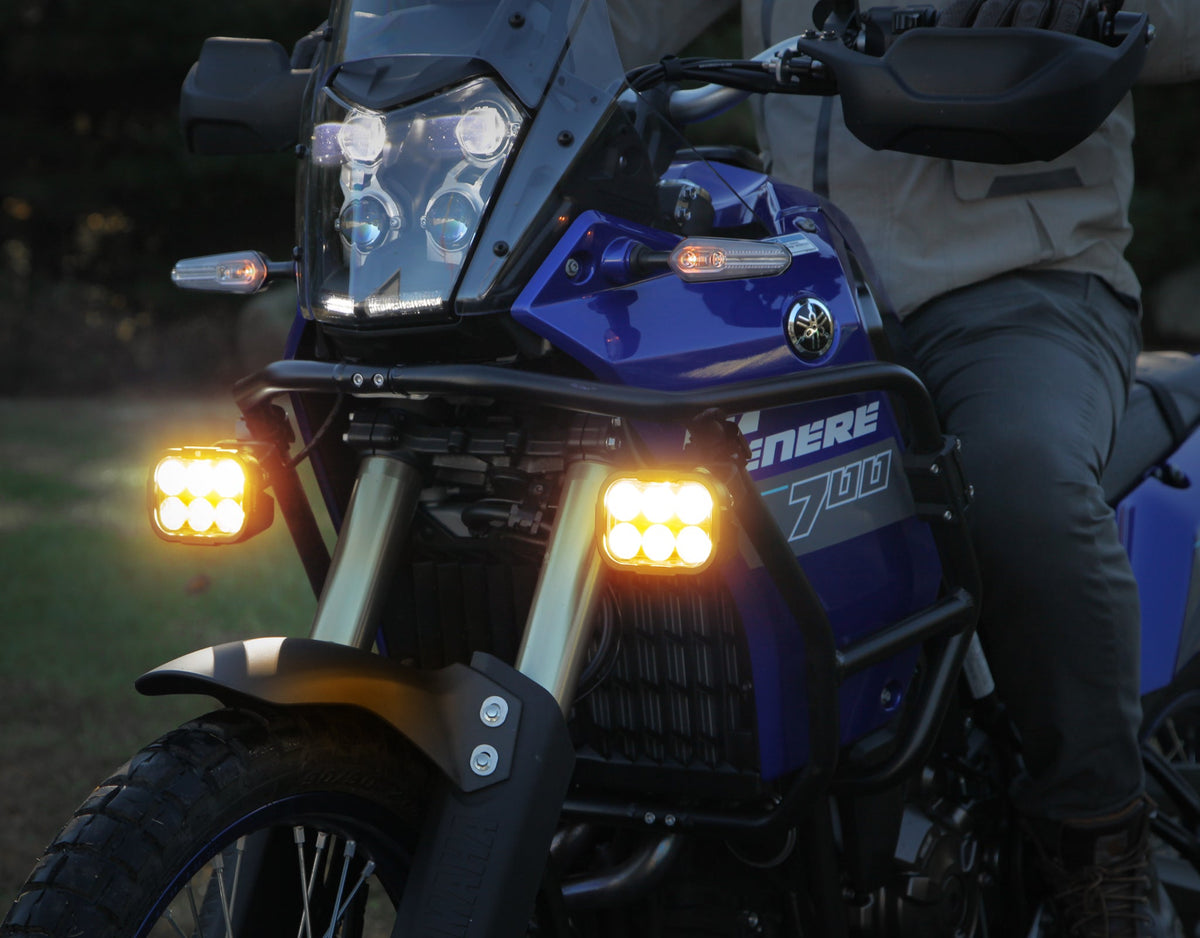

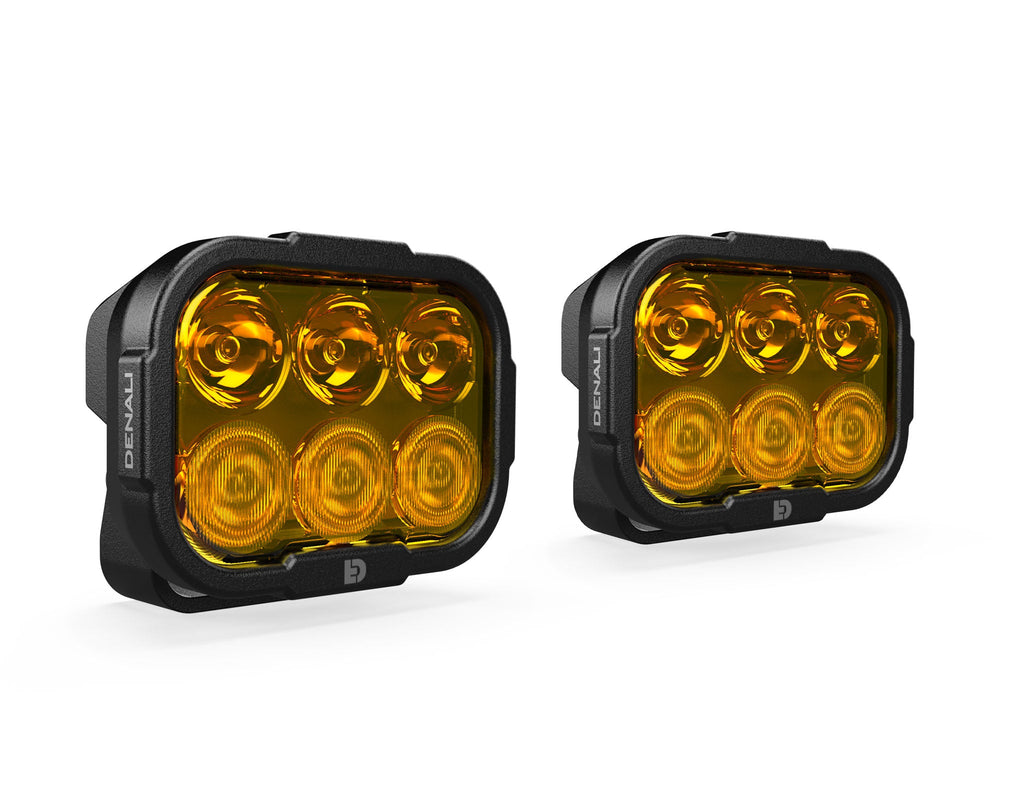

Amber - Great for dusty conditions and improved visibility (off-road/fog)

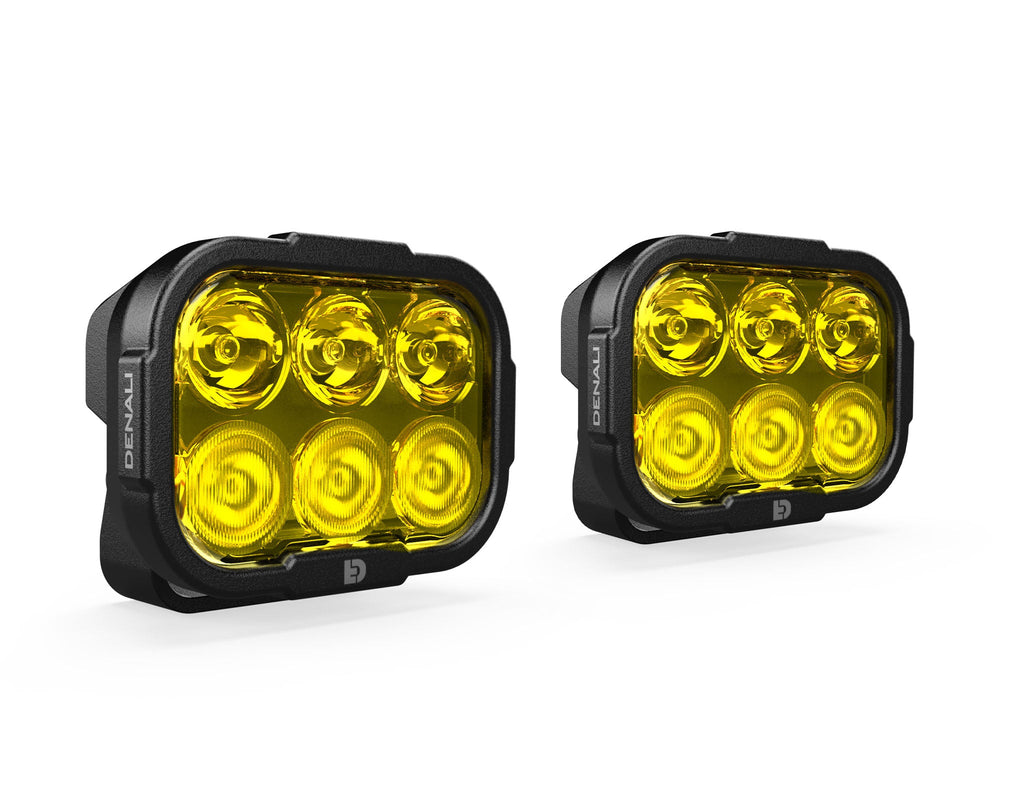

Selective Yellow - Best performance in fog, rain, and adverse weather (off-road/fog)

Compatible Wiring Options

Standard Powersports Harness - Basic, low-profile waterproof switch
Standard Automotive Harness - Flush-mount illuminated rocker switch
Premium Powersports Harness - Overmolded harness with handlebar mount
DataDim Module - Synchronizes light intensity with factory high beam
DialDim Lighting Controller - Independently controls two sets of lights with bonus features
