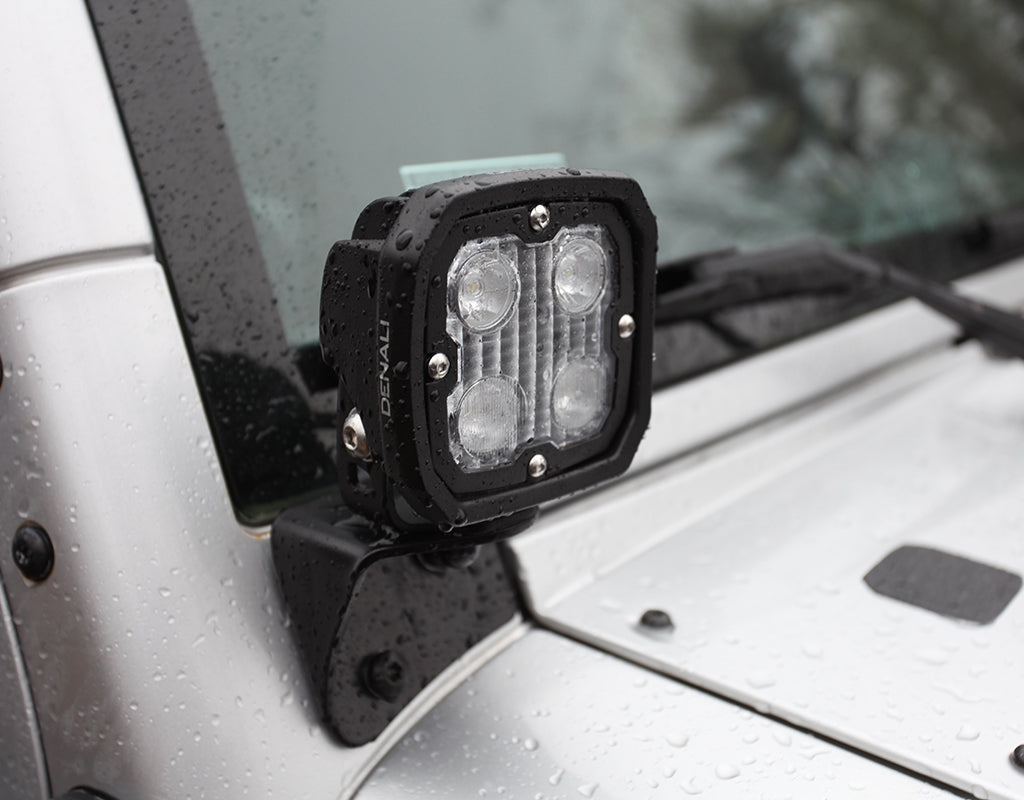

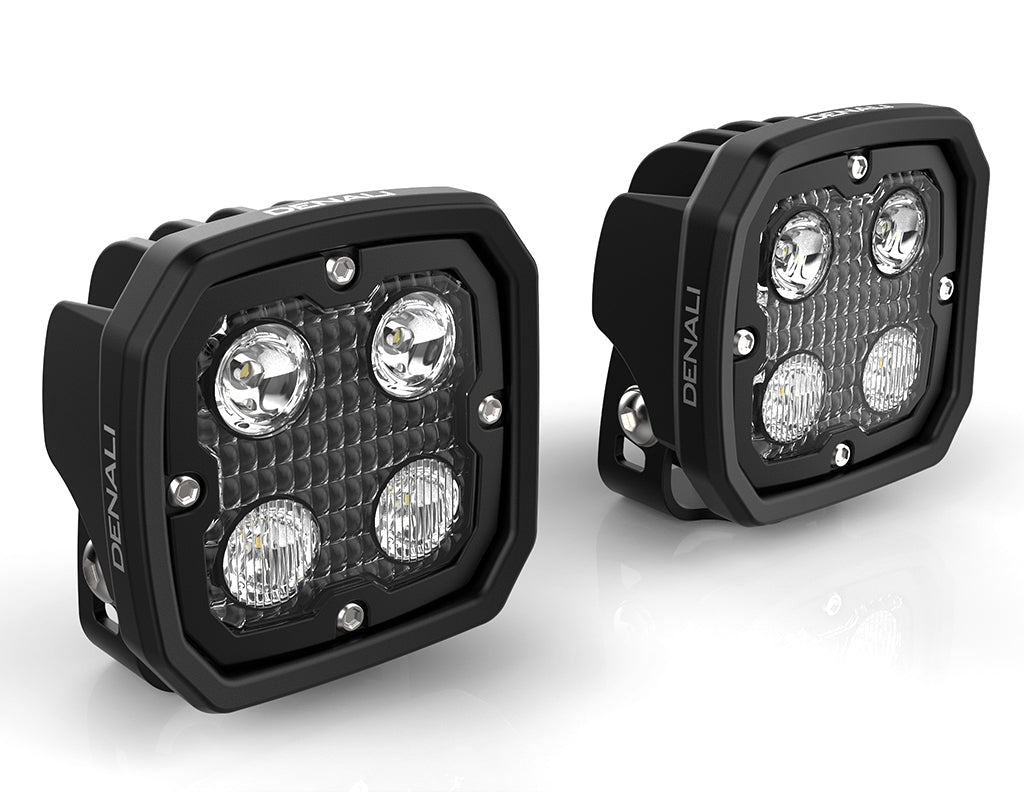

Denali D4 Pods with DataDim™ Technology
DENALI's Most Powerful Auxiliary Light
Boasting a powerful 8,760 lumens in a pair of ruggedly designed light pods, the D4 is DENALI's most powerful auxiliary light. The pods feature a unique hybrid lens system with two elliptical flood lenses and two spot lenses, delivering a versatile beam profile in a compact design.
TriOptic™ Multi-Beam Lens System
The pre-installed hybrid lens features two elliptical flood lenses and two spot lenses to create the ultimate hybrid beam pattern—wide flood in the near field and a piercing spot in the distance, all in one housing. The included spot lenses allow you to convert to a full spot configuration for maximum distance.

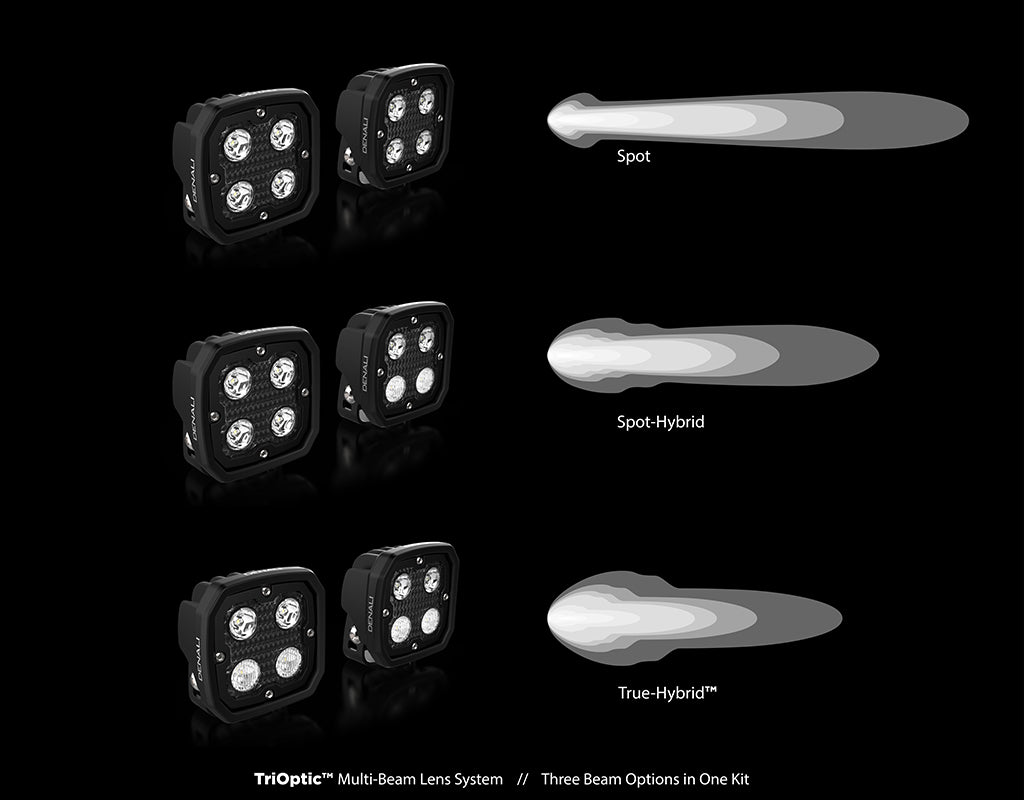

Three Beam Configurations:
- Hybrid (Pre-installed) - Wide flood + penetrating spot in one housing
- Full Spot - All 4 LEDs in spot mode for maximum distance
- Spot-Hybrid Combo - Best balance of distance and width

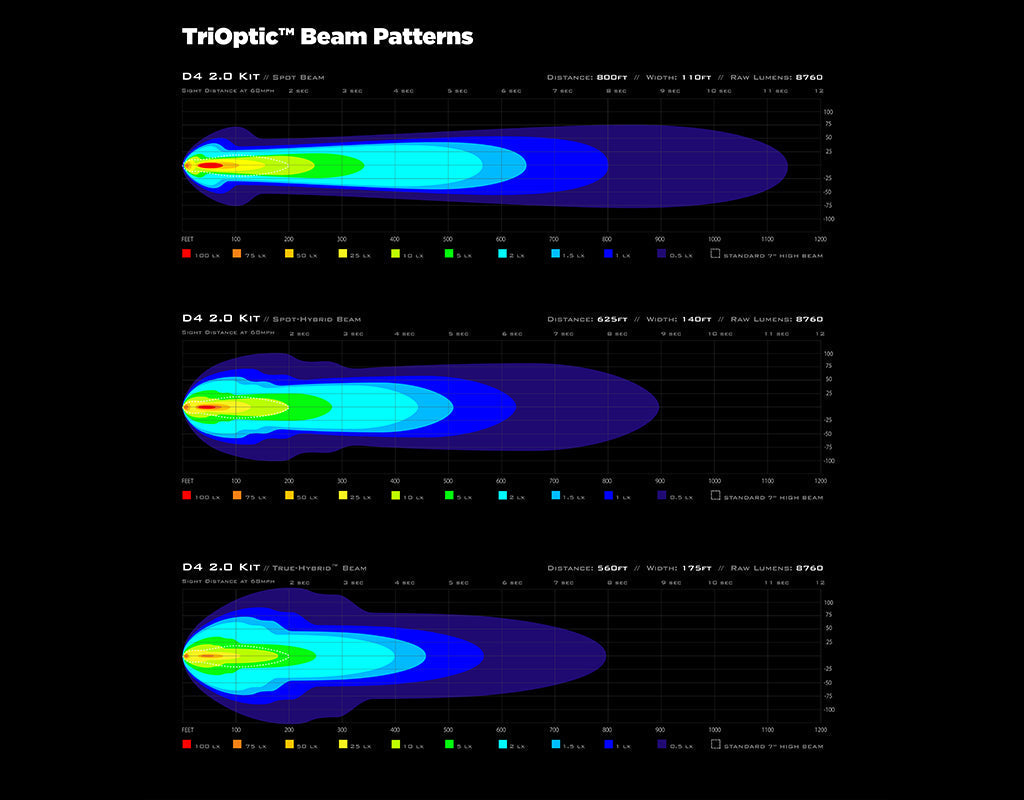

Beam Performance Comparison (per pair at 1 lux)
| Configuration | Distance | Width | Best For |
|---|---|---|---|
| Hybrid (Pre-installed) | 560 feet (171m) | 140 feet (43m) | General purpose use |
| Full Spot | 800 feet (240m) | 110 feet (33m) | Maximum distance |
| Spot-Hybrid | 625 feet (190m) | 140 feet (43m) | Balanced range |
Specifications
| Specification | Value | |
|---|---|---|

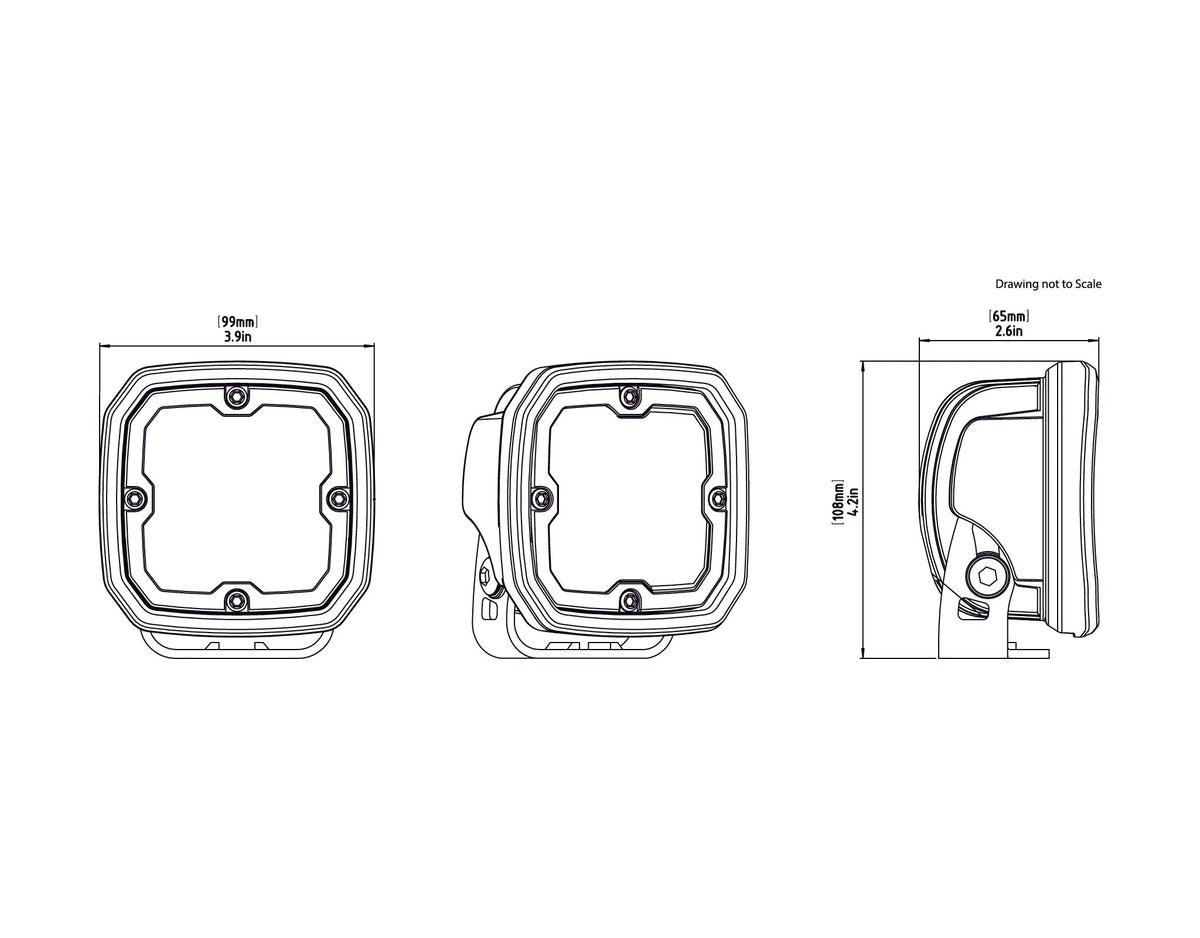

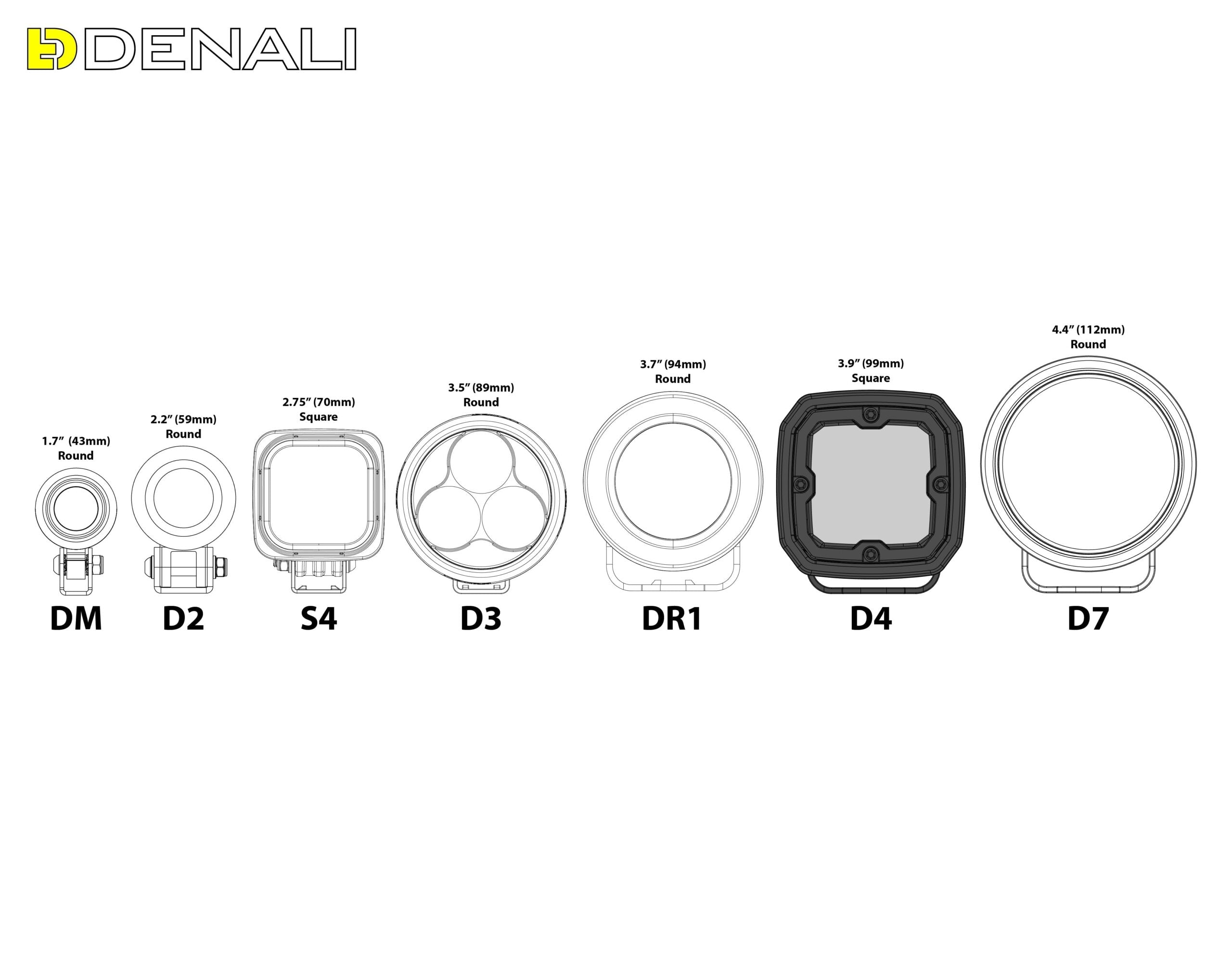

| Pod Size | 3.9" (100mm) Square x 2.6" (66mm) Deep | |
| LEDs | (4x) 10 Watt Cree XPL HI per pod (8x per pair) | |
| Raw Lumens | 8,760 (pair) / 4,380 per pod | |
| Power Draw | 80 Watts / 6.6 Amps (pair) | |
| Operating Voltage | 12V DC | |
| Waterproof | IP67 Submersible | |
| Weight | 1.55 lbs (0.7 kg) per pod | |
| Certification | E-Mark Approved Spot Lens | |
| DataDim™ Compatible | Yes |

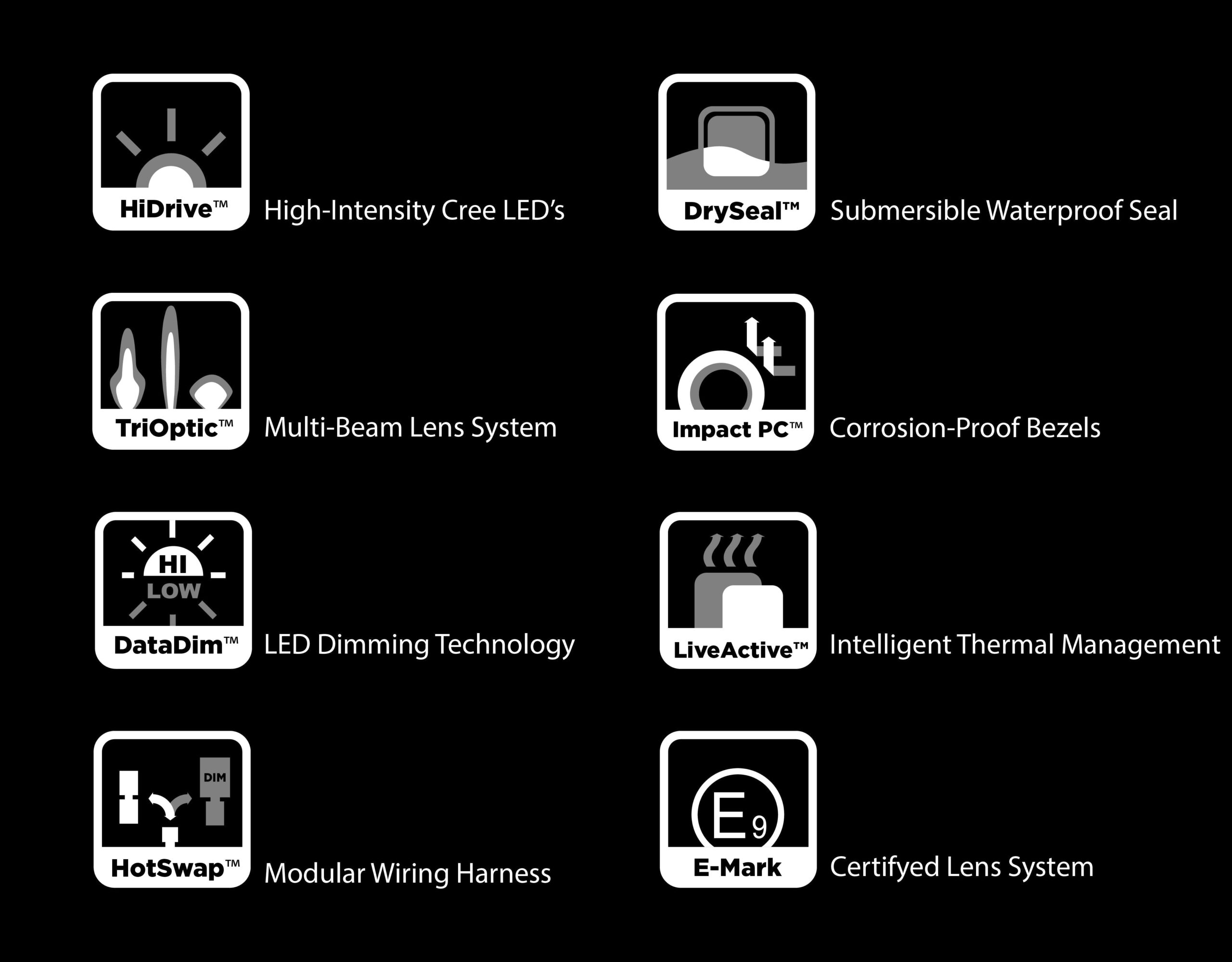

Key Features
- 8,760 lumens per pair - DENALI's most powerful auxiliary light
- TriOptic™ Lens System - Spot, Flood & Hybrid lens options included
- Four 10W Cree XPL HI LEDs per pod for maximum output
- DataDim™ Technology - Plug-and-play integration with dimming controllers
- DrySeal™ Housing - IP67 submersible waterproof housing
- Impact PC™ Bezels - Polycarbonate that won't crack, fade, or corrode
- LiveActive™ Thermal Management - Maximizes output in extreme conditions
- E-Mark Approved - Street-legal spot beam

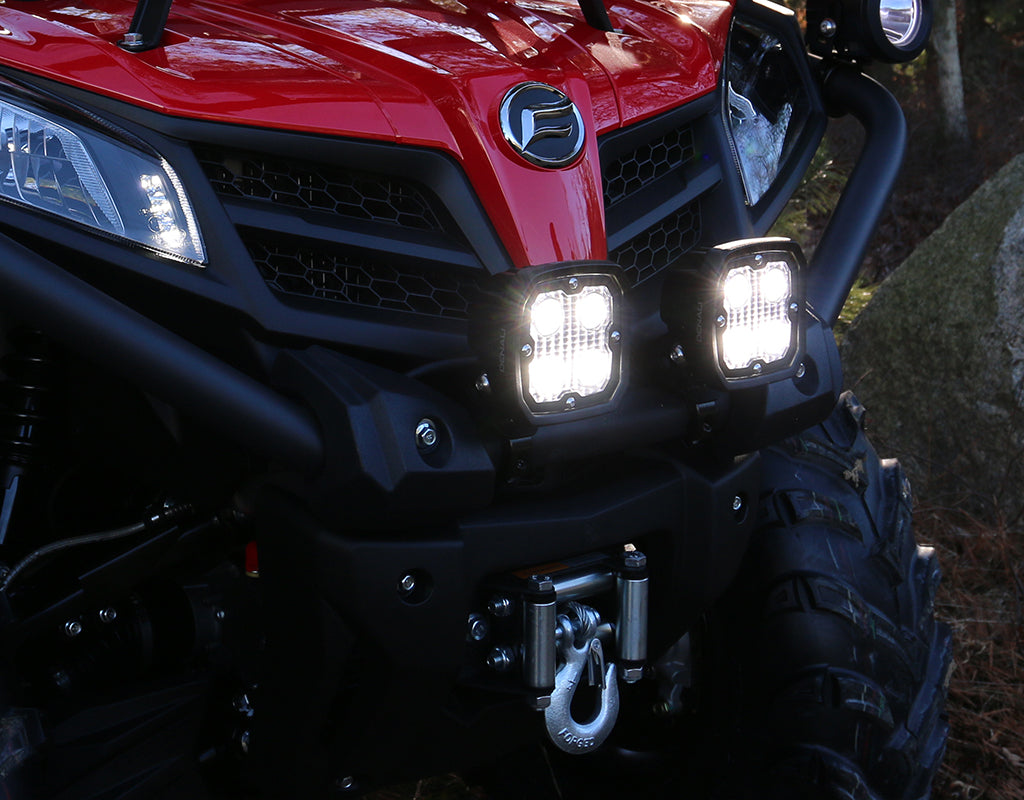

- Universal compatibility - 100+ motorcycle models, ATVs, UTVs, snowmobiles & trucks
Lens Color Options
- White/Clear - Maximum brightness for standard conditions

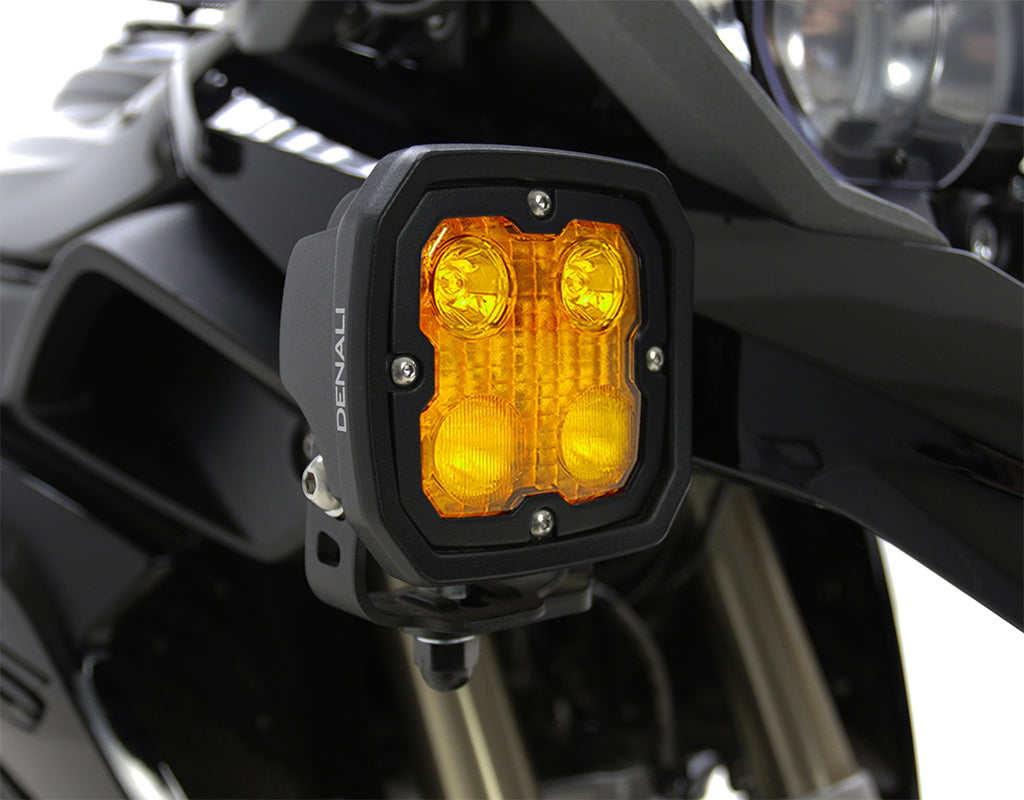

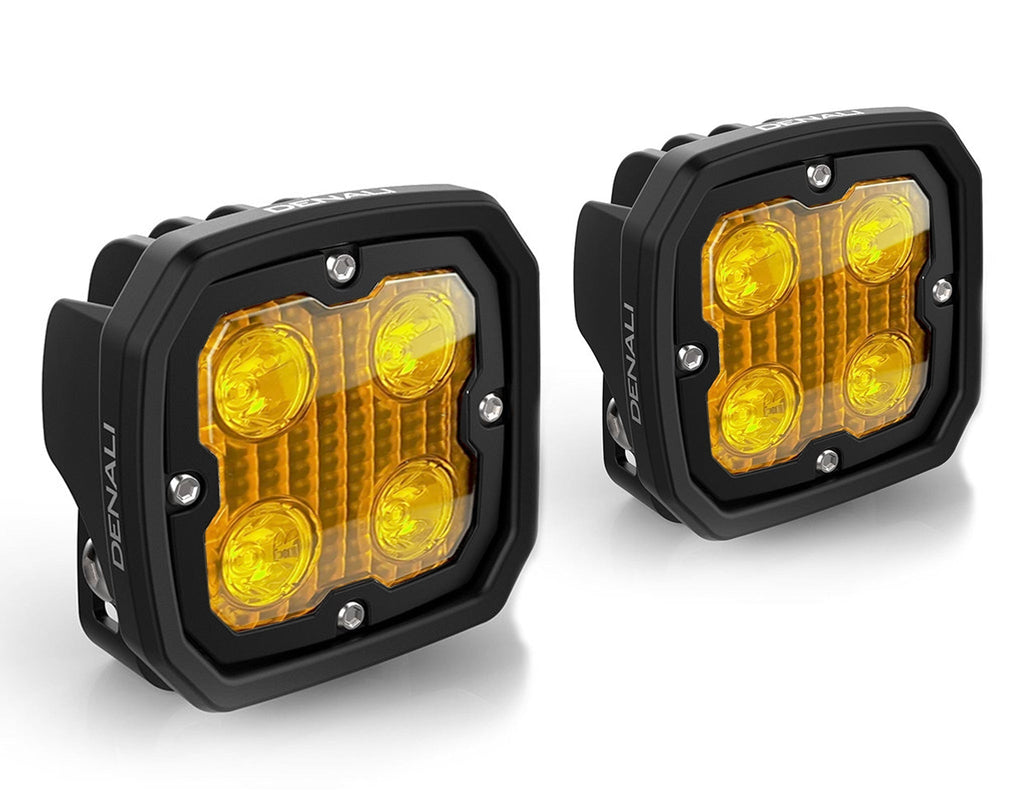

- Amber - Reduces glare in dusty conditions, improved visibility

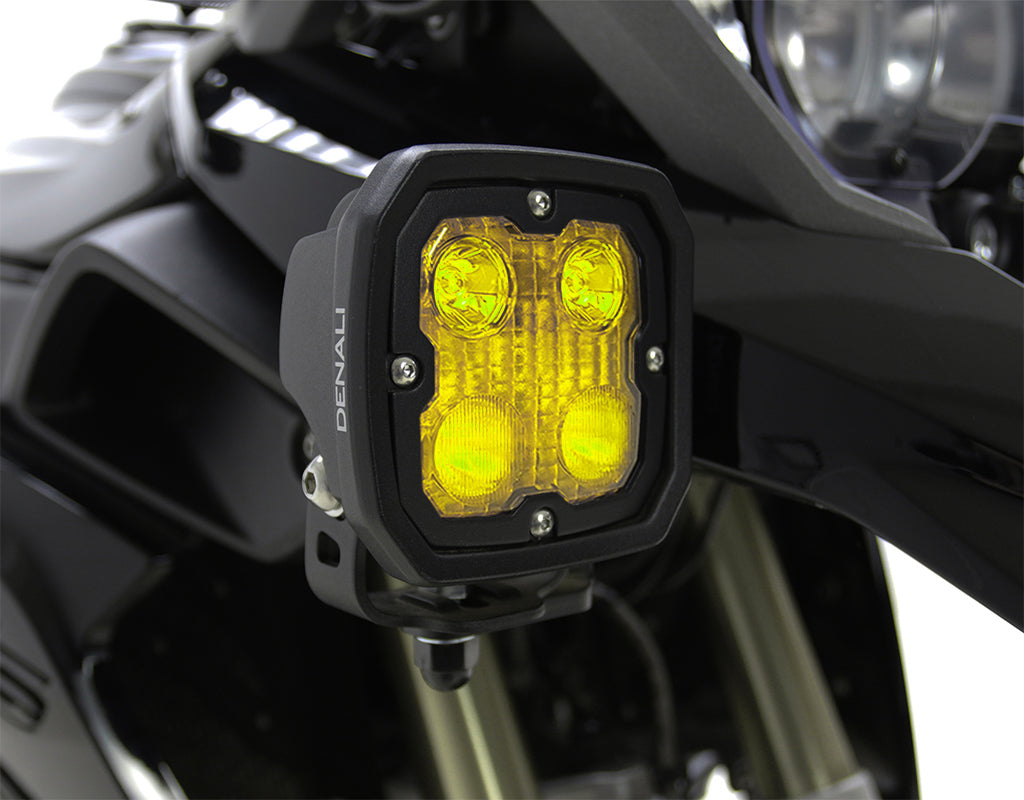

- Selective Yellow - Best performance in fog, rain, and adverse weather
Compatible Wiring Options
- Standard Powersports Harness - Basic, low-profile waterproof switch
- Standard Automotive Harness - Illuminated flush-mount rocker switch
- Premium Powersports Harness - Overmolded harness with handlebar mount
- DataDim Module - Synchronizes light intensity with factory high beam
- DialDim Lighting Controller - Independent control of two light sets with bonus features
- CANsmart Controller - Complete accessory management for all electrical accessories

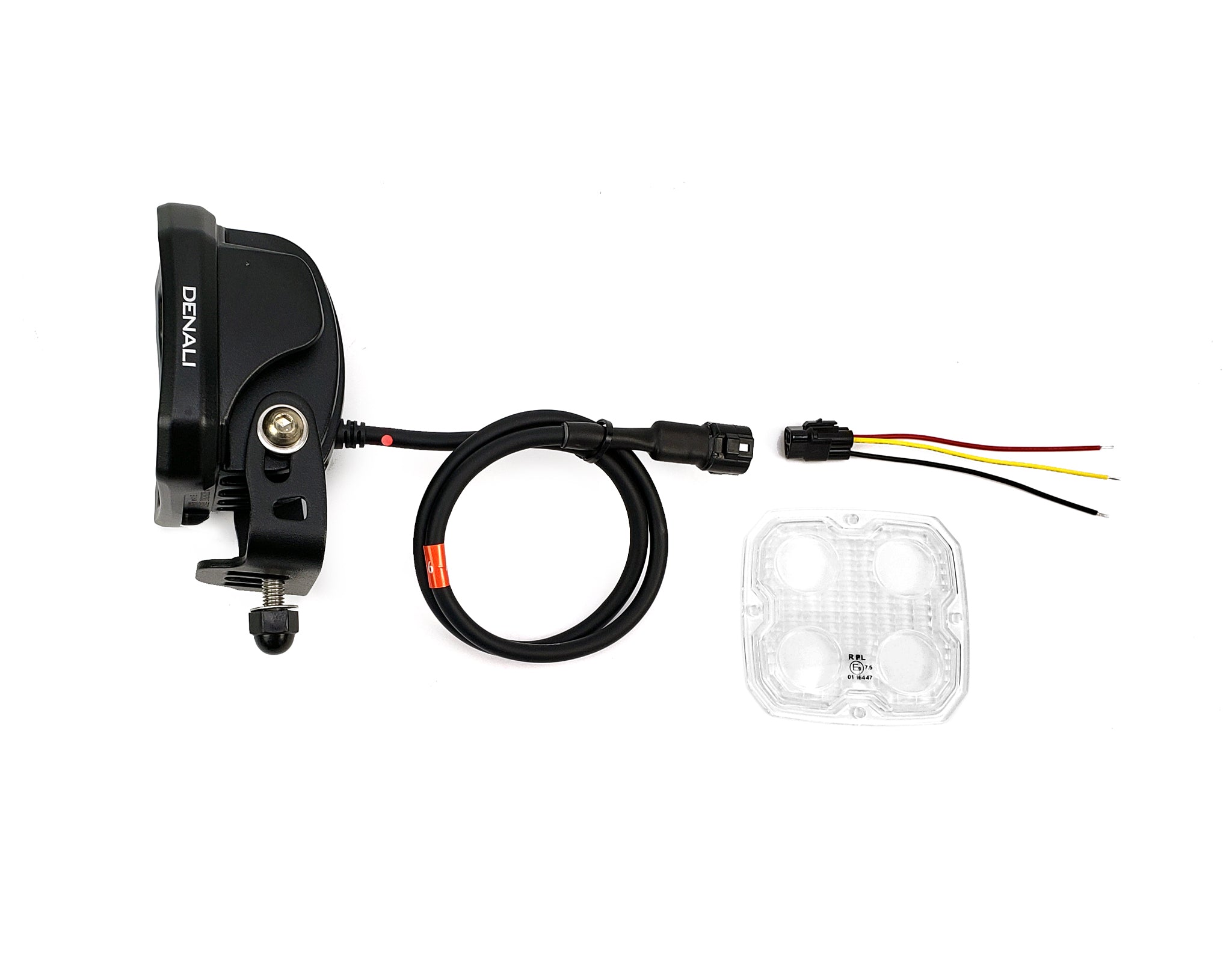

Included In Box (per pod)
- (1x) D4 LED Light Pod with pre-installed hybrid lens
- (1x) D4 Spot Lens
- (1x) Hinge Mounts with M8 Stainless Steel Hardware
- (1x) Wiring Pigtail
Amber/Yellow versions include an additional colored lens set with (2x) Spot Lenses and (1x) Flood Lens.
